Wahl Calibrators

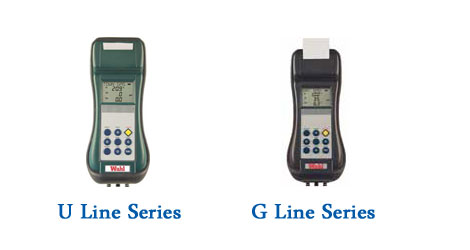

Flue Gas Analyzers

U Line Series

Wahl's NEW! U Line Series Flue Gas Analyzers

• For Residential Burners under 70kw (239,000 BTU)
• Measures up to 8,000 ppm

G Line Series

Wahl's NEW! G Line Series Flue Gas Analyzers

• For Industrial Burners over 70kw (239,000 BTU)
• Measures up to 20,000 ppm

------------------------------- SELECT ------------------------------- Flue Gas Analyzers - Brochure & Technical Data Flue Gas Analyzers - Price List

---

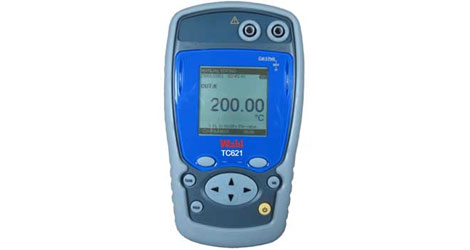

TC621 Pocket Thermocouple Calibrator

Pocket Thermocouple Calibrator

User friendly and robust the Wahl^R TC Series Pocket Calibrators have been designed to simplify temperature transmitters and probes maintenance and commissioning. They measure and simulate thermocouples or RTD's.

• High accuracy: 0.02% of reading.
• Very low temperature coefficient: as low as 15 ppm/^oC in thermocouples.
• Accuracy is maintained even in harsh enviromental conditions.
• Measurement and Simulation of 14 thermocouples.

------------------------------------------------ SELECT ------------------------------------------------ TC621 Pocket Thermocouple Calibrator - Brochure & Technical Data TC621 Pocket Thermocouple Calibrator - Price List

---

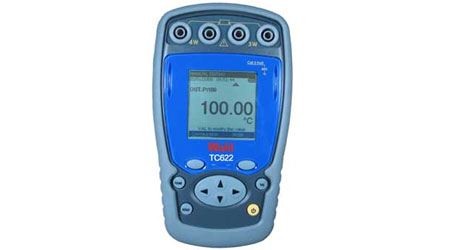

TC622 Pocket RTD Calibrator

Pocket RTD Calibrator

User friendly and robust the Wahl® TC Series Pocket Calibrators have been designed to simplify temperature transmitters and probes maintenance and commissioning. They measure and simulate thermocouples or RTD's.

• High accuracy: 0.02% of reading.
• Very low temperature coefficient: as low as 10 ppm/^oC in thermocouples.
• Accuracy is maintained even in harsh enviromental conditions.
• Measurement and Simulation of 12 RTD types.

------------------------------------------------ SELECT ------------------------------------------------ TC622 Pocket RTD Calibrator - Brochure & Technical Data TC622 Pocket RTD Calibrator - Price List

---

T150 High Precision Temperature Field Calibrator

Portable Calibrators

The Wahl T150 is a highly accurate all-in-one temperature calibration solution for thermocouple, RTD, and thermistor sensors. Featuring two channels - configurable for IN / IN or IN / OUT settings - allow comparison calibration and temperature differential measurement. Simulate temperature on the OUT channel to control temperature recorders, indicators, hand-held thermometers and more.

Accuracy:

• Thermocouples: Up to 0.005% of reading
• RTDs: Up to 0.006% of reading
• Thermistors: Up to 0.006% of reading

Advanced features of the T150:

• Memory: Store calibration procedures in the device and save the results for quick and easy on-site calibrations..
• Calibration Certificates: Use optional DATACAL calibration software to customize and issue your own calibration certificates.
• Advanced data manipulation: Scaling, relative measurements, simulation of ramps and steps, synthesizer, square root, and statistical functions.
• Bluetooth: Connect with Bluetooth enabled sensors wirelessly using the onboard Bluetooth functionality..
• 50K ohm range, Steinhart-HART Equation
• Drive dry-blocks, furnaces, and baths with the 4-20mA OUT signal.
• Transmitter function, Switch test
• Stores up to 10,000 values

------------------------------------------------ SELECT ------------------------------------------------ T150 High Precision Temperature Field Calibrator - Brochure & Technical Data T150 High Precision Temperature Field Calibrator - Price List
