Aerosol Monitors

DUSTTRAK^TM DRX AEROSOL DETECTORS
MODELS 8533, 8533EP AND 8534

Desktop Models: Ideal for Long-Term Surveys and Remote Detecting Applications

The DustTrak DRX is also offered as a standard desktop (Model 8533), as well as a desktop with external pump (Model 8533EP.) Both models have manual and programmable data logging functions, making them ideal for unattended applications. The standard desktop model is most suitable for indoor, continuous monitoring, while the desktop with external pump is designed for 24/7 unattended, remote monitoring outdoors.

The DustTrak DRX desktop models come with USB (device and host), Ethernet, and analog and alarm outputs allowing remote access to data. User adjustable alarm setpoints for instantaneous or 15-minute short-term excursion limit (STEL) are also available on desktop models. The alarm output with user-defined setpoint alerts you when upset or changing conditions occur.

• Long life external pump (8533EP)
• Internal pump (8533)
• Hot swappable batteries
• Gravimetric reference sample capability
• Auto zeroing module (optional accessory)
• STEL alarm setpoint
• Long life internal pump (8534)
• Single-point data collection for walk through surveys (8534)

------------------------------------ SELECT ------------------------------------ Models 8533, 8533EP & 8534 - Brochure & Technical Data Models 8533, 8533EP & 8534 - Price List

---

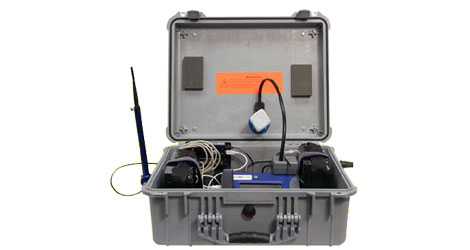

DUSTTRAK^TM AEROSOL MONITOR ENVIRONMENTAL ENCLOSURE
MODELS 8535

Any Environment, Any Application

The DustTrak Environmental Enclosure Model 8535 can be used in conjunction with a DustTrak Aerosol Monitor for many different applications. While its primary use is in outdoor applications, it may also be advantageous in indoor industrial applications to provide additional security and protection for the instrument. The enclosure should be set up in a location where it can easily sample the aerosols of interest. It should be placed away from obstructions which may affect wind currents. The sampling inlet on the Environmental Enclosure samples most efficiently from 0 to 22 mph (0 to 36 kph).

------------------------------------ SELECT ------------------------------------ Models 8535 - Brochure & Technical Data Models 8535 - Price List

---

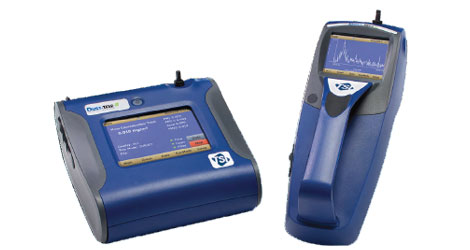

DUSTTRAK^TM II AEROSOL MONITOR
MODELS 8530, 8530EP AND 8532

Easy to Program and Operate

• Measure aerosols in high concentrations up to 400 mg/m3.
• External pump (Model 8530EP) with low power consumption for continuous, unattended monitoring in remote outdoor locations.
• Gravimetric sampling capability using a 37-mm filter cassette which can be inserted in-line with the aerosol stream allowing you to perform an integral gravimetric analysis for custom reference calibrations.
• Zeros automatically using the external zeroing module. This optional accessory is used when sampling over extended periods of time. By zeroing the monitor during sampling, the effect of zero drift is minimized.
• STEL alarm feature for tracking 15-minute average mass concentrations when alarm setpoint has been reached for applications like monitoring fugitive emissions at hazardous waste sites.

------------------------------------ SELECT ------------------------------------ Models 8530, 8530EP & 8532 - Brochure & Technical Data Models 8530, 8530EP & 8532 - Price List

---

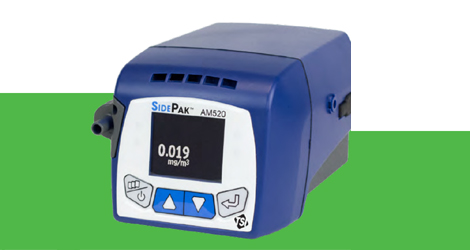

SIDEPAK Personal Aerosol Monitor Model AM520

The SidePak™ AM520 Personal Aerosol Monitor is a small, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM10, Respirable (PM4), PM5 (China Respirable), PM2.5, PM1 and 0.8μ Diesel Particulate Matter (DPM). This monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including but not limited to general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.

• Real-time mass concentration measurement and data logging for "in-the-field" data analysis
• Push button menu operation or programmable through newly improved TrakPro™ v5 Software
• User selectable alarm levels to alert workers to high aerosol concentrations
• Newly designed robust impactors enable reliable size fraction measurements at higher aerosol concentrations over longer run times

------------------------------------ SELECT ------------------------------------ SIDEPAK Personal Aerosol Monitor Model AM520 - Brochure & Technical Data SIDEPAK Personal Aerosol Monitor Model AM520 - Price List

---

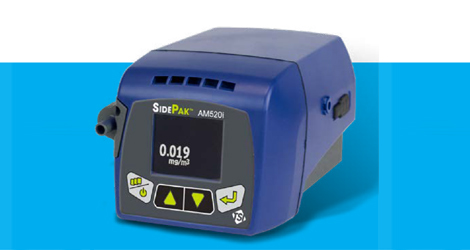

SIDEPAK Personal Aerosol Monitor Model AM520i

The SidePak™ AM520i Personal Aerosol Monitors are small, portable, battery-operated, data-logging, light-scattering laser photometers that provide real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM10, Respirable (PM4), PM5 (China Respirable), PM2.5, PM1 and 0.8μ Diesel Particulate Matter (DPM). This intrinscially safe monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including but not limited to general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.

• Real-time mass concentration measurement and data logging for "in-the-field" data analysis
• Push button menu operation or programmable through newly improved TrakPro™ v5 Data Anaylsis Software
• User-selectable alarm levels to alert workers to high aerosol concentrations
• Newly designed robust impactors enable reliable size fraction measurements at higher aerosol concentrations over longer run times
• Model AM520i designed and tested to pass Intrinsic safety requirements as established by IEC (International Electrotechnical Commission)— see TSI App Note EXPMN-017 for a basic understanding of intrinsic safety

------------------------------------ SELECT ------------------------------------ SIDEPAK Personal Aerosol Monitor Model AM520i - Brochure & Technical Data SIDEPAK Personal Aerosol Monitor Model AM520i - Price List

---

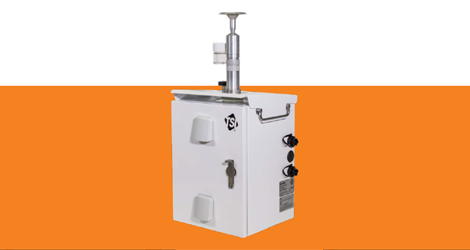

DustTrak Environmental Monitors

The DustTrak Environmental Monitor is an air monitoring system built to house DustTrak photometer models 8540 or 8543. DustTrak's early detection features allow quick response to exposure concerns. This system is built upon proven DustTrak technology that thousands of people use every day.

The DustTrak environmental monitor is a real-time supplement to Federal Reference Method (FRM) data collection that can be deployed remotely quickly.

• Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5 Respirable, PM10 and total PM size fractions
• Minimal set-up
• New tri-pod mount capability
• Compatible with the new Gas Monitor GM460 (sold in North America only)
• Easy to use custom alarm settings for alerts anytime, anywhere
• Perform in-line gravimetric analysis for custom reference calibrations
• Aerosol concentration range 0.001 to 150 mg/m 3 Environmentally protected and tamperproof with environmental enclosure
• Cloud Data Management System for efficient remote monitoring anywhere
• MCERTS certified models now available for PM2.5, PM10 and total PM, respectively

------------------------------------ SELECT ------------------------------------ DustTrak Environmental Monitors - Brochure & Technical Data DustTrak Environmental Monitors - Price List
