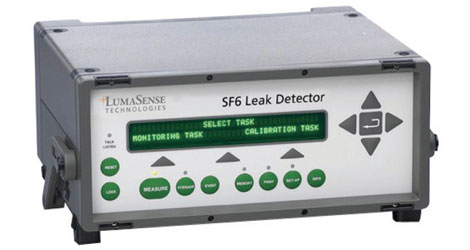

SF6 Leak Detector

Monitoring SulfurHexa Fluoride(SF6) In the Power Utility Industry

LumaSense's SF6 Leak Detector offers an unmatched combination of performance and convenience. Based on Photoacoustic Spectroscopy (PAS) technology, the system offers highly accurate, reliable and stable quantitative gas detection. The growing environmental requirements regarding the use of SF6 make LumaSense's system a coveted tool designed for every day use.

SF6-Filled Equipment Testing In order to meet final test standards, as well as to up hold any new regulations that may been forced to enable the continued use of SF6, a manufacturer of SF6 - filled equipment must perform quality assurance testing. The SF6 Leak Detector system's accuracy and low detection limits enable manufacturers to complete these tests more efficiently and with greater precision.

  • Ultra sensitive - 5 ppb detection limit
  • Easy to use
  • No consumables
  • No radioactive source
  • Wide measurement range
  • High stability
  • Portable
  • Rugged
  • Response in less than 15 seconds
  • Includes water-vapor measurement and compensation
  • Auto compensates for temperature and pressure fluctuations

Download Catalogue
