Combustibles Gases

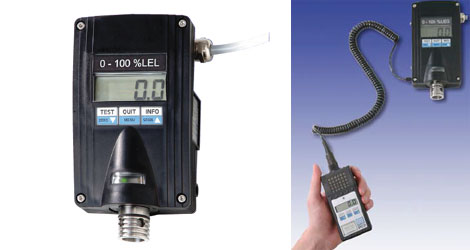

Transmitter CC28

State-of-the-art detection of combustible gases

Whereven hazards by combustible gases or vapours are to be expected, the transmitter CC28 and GfG's proven monitoring systems are the right choice for reliable surveillancel. The ATEX-certified design, an integrated, Ex-proof buzzer and bright alarm LEDs provide highest safety including visual and audible alarm even in hazardous areas. Thus the gas alarm does not only alert the man in the central but also the man at site.

  • Display of gas concentration at transmitter
  • Ex-proof visual and audible alarm
  • ATEX approval II 2 G EEx dem ib IIC T4
  • One-man calibration at transmitter by means of touch keys or remote control
  • Plug-in smart sensor - Sensor replacement without opening of casing





CS 21 Transmitter

Low Cost Solid State Sensor

The CS 21 transmitter uses the proven chemosorption detection principle for detection of toxic gases, vapors and combustibles. The rapid response of the transmitter provides opportunity to take counter measures and thereby limit damages. The long life of the sensors makes the CS 21 a low-cost solution for your detection needs. A transmitter can be continuously operated for more than 5 years

  • High sensitivity to a broad range of refrigerants
  • Long sensor life
  • Fast response

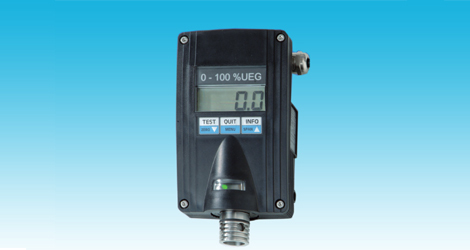

Transmitter CC28 D

State-of-the-art monitoring of combustible gases

Wherever hazards from combustible gases or vapours are to be expect-ed, the transmitter CC28 and GfG's proven monitoring systems are the right choice for reliable surveillance. The ATEX-certified design provides the highest safety even in hazardous areas. LEDs indicate operation (green) or fault (red). The Transmitter CC28 D provides a large 4-digit LCD for detec-tion values and messages and service. With 3 touch keys under the display several adjustements, calibrations and function test can be done

  • Display of gas concentration at transmitter
  • ATEX approval II 2 G EEx dem [ib] IIC T4
  • One-man calibration at transmitter via touch keys or remote control
  • Plug-in Smart Sensor
  • Fastest response time worldwide

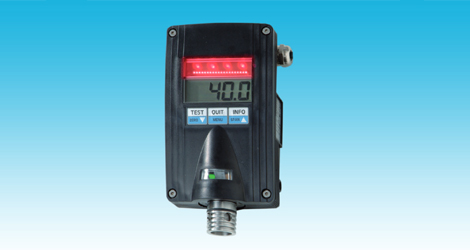

Transmitter CC28 DA

State-of-the-art monitoring of combustible gases

Wherever hazards from combustible gases or vapours are to be expect-ed, the transmitter CC28 and GfG's proven monitoring systems are the right choice for reliable surveillance. The ATEX-certified design provides the highest safety even in hazardous areas. LEDs indicate operation (green) or fault (red). The Transmitter CC28 D provides a large 4-digit LCD for detection values and messages and service. With 3 touch keys under the display several adjustments, calibra-tions and function test can be done.The bright alarm LED and the inte-grated buzzer make this controller a complete gas warning system. No need and high costs for Ex-proof buzz-er, even less wiring. The gas alarm does not only alert the control room but also the person at site.

  • Display of gas concentration at transmitter
  • Ex-proof visual and audible alarm
  • ATEX approval II 2 G EEx dem [ib] IIC T4
  • One-man calibration at transmitter via touch keys or remote control
  • Plug-in Smart Sensor
  • Fastest response time worldwide

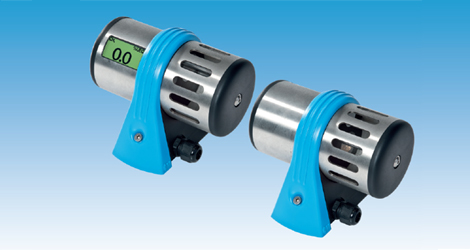

Transmitter IR-29

Innovative infrared transmitter for combustible gases

Non dispersive infrared (IR) sensors are increasingly seen as the detection technology of choice for many fixed combustible gas measurement applications. IR sensors offer a number of advantages over traditional catalytic LEL sensors. IR sensors are extremely stable, have longer operational life spans, and are not subject to damage or loss of sensitivity due to exposure to sensor poisons or inhibitors.

  • First intrinsically safe IR transmitter for combustible gas measurement
  • ATEX II 1G Ex ia IIC T4 Ga C0158 Certified for Ex Zone 0 Hazardous Locations
  • Temperature, humidity and pressure compensation
  • Patented infrared (NDIR) 4-beam 4-wavelength technology
  • Energized IR sensor head can be replaced in Ex Zone 0 areas
  • Maintenance and service-friendly

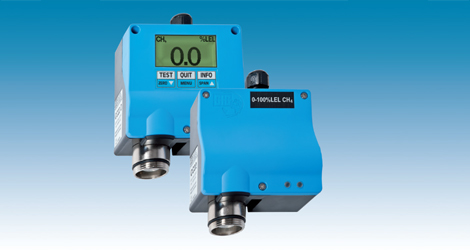

Transmitter CC22

for combustible gases

The CC22 works according to the heat of reaction principle, a proven method for measuring combustible gases. The transmitters are fitted with high-performance electronics for voltage stabilization, processing of readings, and temperature compensation. Follow-up costs are minimized thanks to the long lifespan of the sensors. Universal

  • Uses the proven heat of reaction principle
  • Long service life of the sensors
  • High efficiency and low follow-up costs
  • Sturdy plastic housing (IP54)
  • Cost-effective single-man adjustment
  • Affordable solution for many measuring tasks

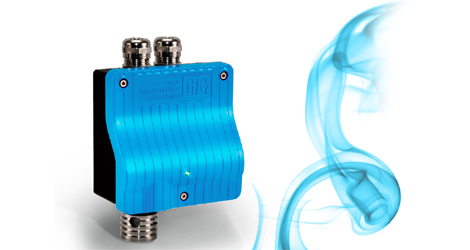

Transmitter CC22ex

For flammable gases and vapours in Ex zone 2

The CC22ex uses the Catalytic Combustion (CC) measurement principle, a proven measurement method for monitoring combustible gases. It is intended for use in Zone 2 hazardous areas. Voltage stabilisation, processing of the measured value output and temperature compensation are all handled by the smart electronics. The long service life of the sensors reduces operating costs.

  • Time-proven and Innovative
  • Communicates digitally using Modbus
  • Smart processing of measured values
  • Service-friendly App* and Smart Sensors
  • Remote calibration adapter

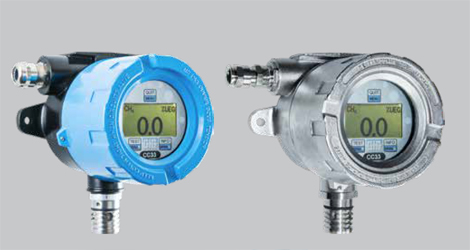

CC 33 Transmitter

for flammable gases in explosion-proof design Ex-Zone 1

It has always been our aspiration to combine innovative ideas and technology with functional design. This is how quality and longevity come about. Attributes symbolic of the name GfG in gas measurement.

Are you looking for an innovative transmitter for flammable gases, but need explosion protection? Then a transmitter from the GfG 33 series is the right choice.

  • Robust housing for every application
  • Operation by means of magnetic pin
  • Proven and innovative is not a contradiction
  • Proven and innovative is not a contradiction
  • Sensor technology
  • Universal signal transmission
  • Signal processing
  • Smart sensors
