Green House Gases

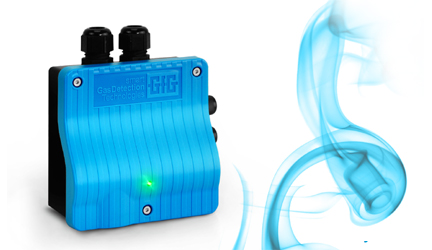

Transmitter IR 24

Stationary Detection of carbon dioxide (CO2)

The IR 24 does not contain any moving parts, which may be subject to wear and tear. This ensures a long lifetime and low maintenance cost. Additional safety is provided by the permanent self-check and function test of the GMA controller. Sensor and electronics are protected in a solid enclosure from dust and water according to IP 54. This ensures that water cannot enter the detector, even in wet environments.

Behind a service lid on the front of the IR 24 you find potentiometers and test connectors for easy adjustment of zero point and span. This allows one-man calibration on-site and reduces service down-time.

  • Selective NDIR detection principle
  • Long sensor life for low follow-up cost
  • Easy handling
  • Signal output either 0.2 .. 1 mA or 4 .. 20mA
  • Potentiometers for easy adjustment of zero point and span
  • Connectors for test of output signal
  • Solid aluminium casing, IP 54
  • High reliability and repeatability of measurement results
